DESCRIPTION

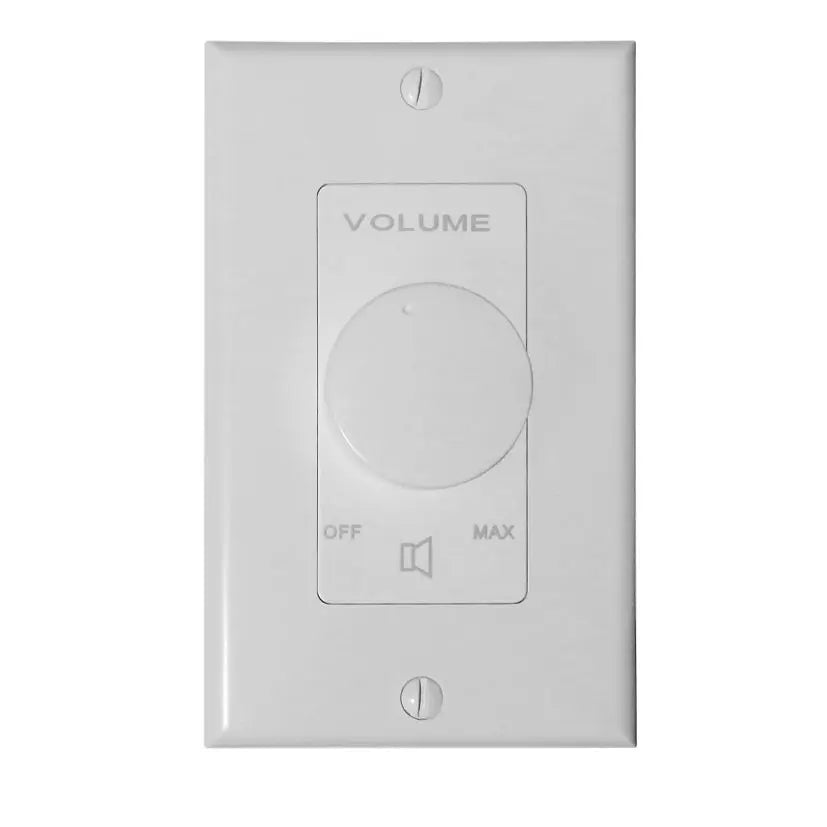

The VOX-AT10P is a low cost single-gang, 10W, ten-step, continuous rotary, audio level attenuator with an OFF position used to attenuate audio power to any number of loudspeakers, up to 10W load. For use with 25V or 70V distributed audio systems.
OPTIONAL ACCESSORIES
- VOX-ATB – Attenuator Wall Mount Box
Features:
- White plastic faceplate
- White knob
Specs:
| Power Rating: | 10W Continuous |
| Attenuation (Ref: 25V, 70.7V line): | Position 10: Full Signal, Position 9 to 3: -3 dB each, Positions 2 to 1: -6 dB each, Position 0: No Signal |
| Insertion Loss: | <0.5 dB |
| Audio Connection: | Terminal Block |
| Installation: | Single-gang electrical box, 2-1/8” (D) |
| Environment: | Indoor |
Specifications subject to change without notice.
