Description

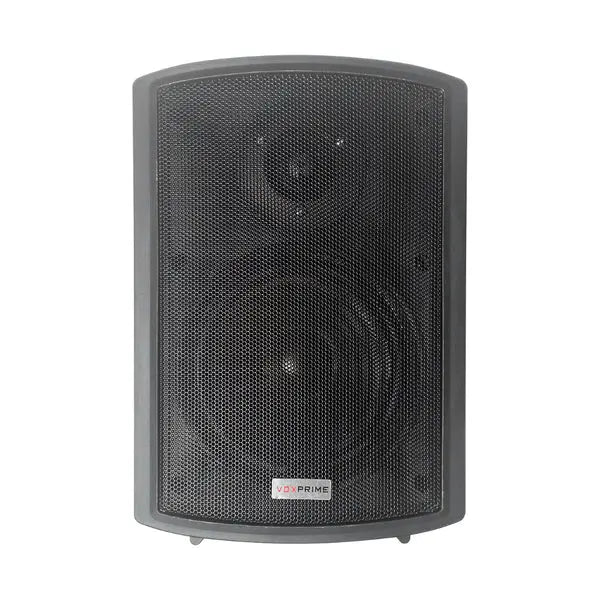

The VOX-CS30B is a high-end cabinet speaker designed to provide excellent sound quality in high performance commercial foreground and background music installations where construction and the acoustic environment require a surface mounted loudspeaker system. The VOX-CS30B has an appealing, yet unobtrusive look that suits virtually any installation.
Features:
- 8 Ohm with 70V Transformer built-in (Taps: 30W / 15W / 7.5W / 3.8W / OFF / 8 Ohm)
- 5″ Mica Cone woofer and 1/2″ dome tweeter with strontium magnet
- Weatherproof
- UV and saltwater proof, Includes a rustproof aluminum mounting bracket
- Black
Specs:
| Average Sensitivity: | 89 dB, 1W/1M |
| Loudspeaker Power Rating: | 75W RMS |
| Maximum Power Rating: | 150W @ 8 Ohms |
| Calculated Output: | 100 dB-SPL 5W/1M |
| Woofer: | 5″ Mica Cone |
| Tweeter: | 1/2″ Mylar Dome |
| Magnet Type: | Strontium |
| Frequency Response: | 75Hz ~ 20kHz |
| Nominal Coverage Angle: | 120° Conical |
| Transformer: | 70V (Taps: 30W / 15W / 7.5W / 3.8W / OFF / 8 Ohm) |
| Dimensions: | 9.9” (H) x 7.1” (W) x 5.75” (D) |
| Weight: | 6.5 lbs |
| Color: | Black |
| Environment: | Indoor/Outdoor |
Specifications subject to change without notice.
