Description

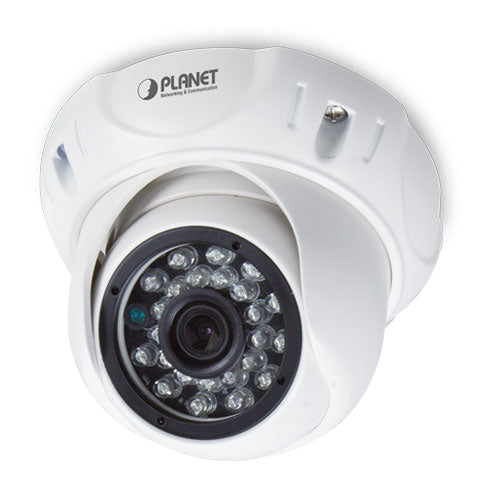

1080p HD Analog Camera

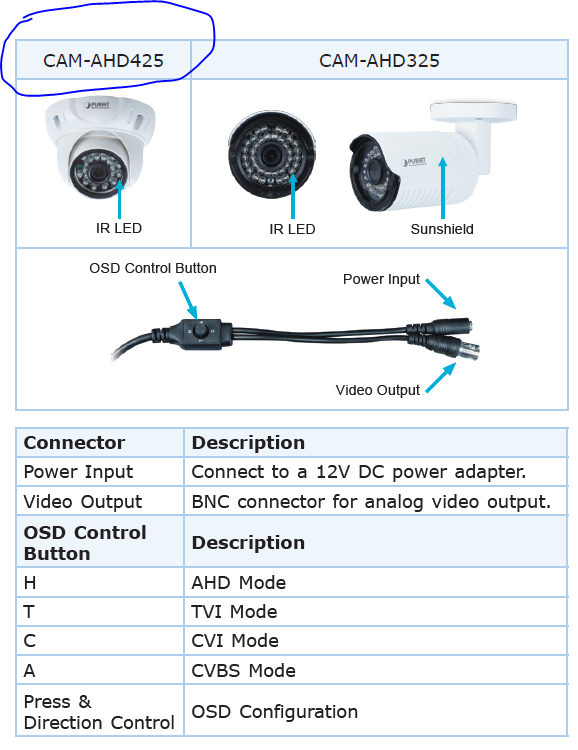

PLANET CAM-AHD425 camera is a high-resolution analog camera and able to work with AHD DVR for different applications. Users can easily upgrade their surveillance system in the existing coaxial infrastructure without having to overhaul it. Besides, the camera supports TVI/CVI/CVBS mode and the camera can comply with different DVRs like TVI or CVI DVR. Through the OSD control button, user is able to set up AHD/TVI/CVI/CVBS mode easily.
Camera
1/2.8" Sony 2MP CMOS sensor
Fixed lens 3.6mm/F1.2
0 lux with built-in IR LED
Maximum resolution up to 1920 x 1080
24 built-in IR LEDs for low light and long distance up to 25 meters
Video
Supports AHD/TVI/CVI/CVBS mode
Auto Gain Control and White Balance
Auto Electronic Shutter Time: 1/25s~1/45,000s
S/N ratio of more than 52dB
Image enhancement with 2DNR
Digital Wide Dynamic Range
Transmission distance up to 500 meters
Hardware
Video Output: 1 Vp-p composite video, 75 ohms
IP65-certified protection
Analog operation; easy to install; fast reaction
power supply not included
Camera | |
---|---|
Sensor | Sony 1/2.8" 2MP CMOS |
Effective Picture Elements | 1920 (H) x 1080 (V) @ 30fps |
System | PAL/NTSC |
Lens Furnished | Fixed lens 3.6mm/F1.2 |
Minimum Illumination | 0.01 lux @ F1.2, 0 lux with built-in IR LED |
Video Output | 1 Vp-p composite video, 75 ohms |
Protection Class | IP65 |
Power Supply | 12V DC, 1A |
Dimensions (W x D x H) | 98 x 110 x 77 mm |
LED | |
IR LED | 24 pcs Φ5 LED |
IR Project Distance | up to 25 meters |
Video & Audio | |
Hybrid Signal Ouput | AHD/TVI/CVI/CVBS mode |
S/N Ratio | More than 52dB |
White Balance | ATW/MWB |
D-WDR | ON/OFF |
Day and Night | Auto/Color/B/W/EXT |
Gamma Characteristic | 0.45 |
Exposure Mode | Globe/Center/BLC/FLC |
Auto Electronic Shutter | 1/25s~1/45,000s |
Digital Noise Reduction | 2DNR |
Defog | Auto/ON/OFF |
AGC | Auto/Manual |
Transmission Distance | Transmission over common coaxial 75-3 cable up to 300-500 meters |
Environment | |
Operating Temperature | -30 to 50 degrees C |
Humidity | ≤85%RH |
