Description

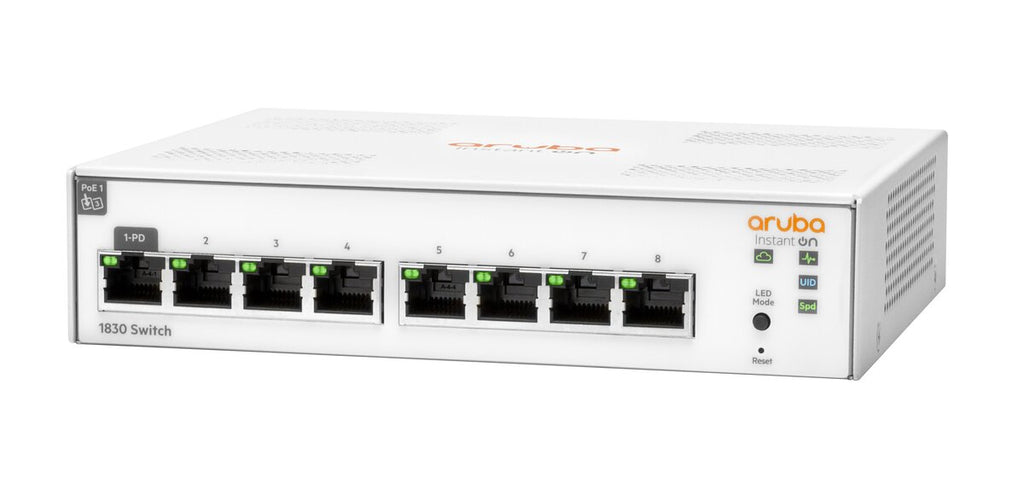

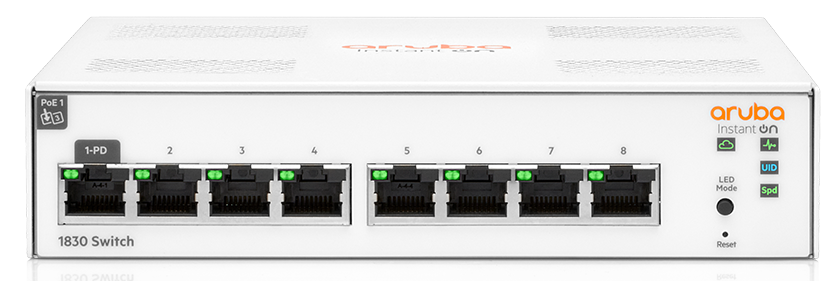

Aruba Instant On 1830 Switch Series
Small businesses continue to face challenges to stay afloat as the world wrestles with this multi-year pandemic. They need day-today tasks to be simple to keep operations running smoothly, and with increasing costs making it more expensive than ever to stay in business, they need affordable solutions.
Fast, reliable, and secure network connections play a critical role in helping businesses maintain a competitive advantage. At the same time, with constrained resources and a growing number of interconnected devices, getting the most valuable networking solution for the money has become a basic need for budget-strapped small businesses.
Aruba Instant On 1830 Switch Series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes - all at an affordable price point.
Media & Performance
Network & Communication
Layer Supported: 2Networking Standards: IEEE 802.1D
Networking Standards: IEEE 802.1p
Networking Standards: IEEE 802.1Q
Networking Standards: IEEE 802.1w
Networking Standards: IEEE 802.3ad
Networking Standards: IEEE 802.3af
Networking Standards: IEEE 802.3at
Networking Standards: IEEE 802.3z
Networking Standards: IEEE 802.1ab
Networking Standards: IEEE 802.3
Networking Standards: IEEE 802.3ab
Networking Standards: IEEE 802.3ac
Networking Standards: IEEE 802.3az
Networking Standards: IEEE 802.3u
Networking Standards: IEEE 802.3x
Management & Protocols
Manageable: YesPower Description
PoE (RJ-45) Port: YesPoE Budget: 65 W
Frequency: 50 Hz
Frequency: 60 Hz
Power Source: Power Supply
Power Consumption: 8.20 W
Physical Characteristics
Form Factor: Cabinet MountForm Factor: Rack-mountable
Form Factor: Under Table
Form Factor: Table Top
Form Factor: Wall Mountable
Height: 1.54" (39.10 mm)
Width: 6.81" (173 mm)
Depth: 6.18" (157 mm)
Weight (Approximate): 771.10g
Specifications:
| Specifications | Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
|---|---|---|---|---|---|---|
| Gigabit Copper Ports | 8; Class 3 PD (port 1) | 8; Class 4 (ports 1 -4) | 24 | 24; Class 4 (ports 1 -12) | 48 | 48; Class 4 (ports 1 -24) |
| Uplinks | — | — | 2 SFP 1GbE ports | 2 SFP 1GbE ports | 4 SFP 1GbE ports | 4 SFP 1GbE ports |
| Dimensions | 157.0(D) x 173.0(W) x 39.1(H) mm | 195.1(D) x 245.1(W) x 43.9(H) mm | 215.9(D) x 443.0(W) x 43.9(H) mm | 253.0(D) x 443.0(W) x 43.9(H) mm | 253.0(D) x 443.0(W) x 43.9(H) mm | 351.0(D) x 443.0(W) x 43.9(H) mm |
| Weight | 1.70 lb (0.77 kg) | 3.40 lb (1.54 kg) | 5.50 lb (2.49 kg) | 7.65 lb (3.47 kg) | 7.80 lb (3.54 kg) | 10.90 lb (4.94 kg) |
| Throughput (Mpps) | 11.90 Mpps | 11.90 Mpps | 38.68 Mpps | 38.68 Mpps | 77.37 Mpps | 77.37 Mpps |
| Switching capacity | 16 Gbps | 16 Gbps | 52 Gbps | 52 Gbps | 104 Gbps | 104 Gbps |
| Reliability MTBF (years) | 188.2 | 105.9 | 203.6 | 96.6 | 114.4 | 83.5 |
| Maximum power rating | 100-127V: 8.09W 200-220V: 8.05W |
100-127V: 86.07W 200-220V: 83.67W |
100-127V: 19.1W 200-220V: 19W |
100-127V: 244.6W 200-220V: 237.2W |
100-127V: 40.2W 200-220V: 40W |
100-127V: 462.5W 200-220V: 452.5W |
| Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty | Limited Lifetime Warranty |
