Description

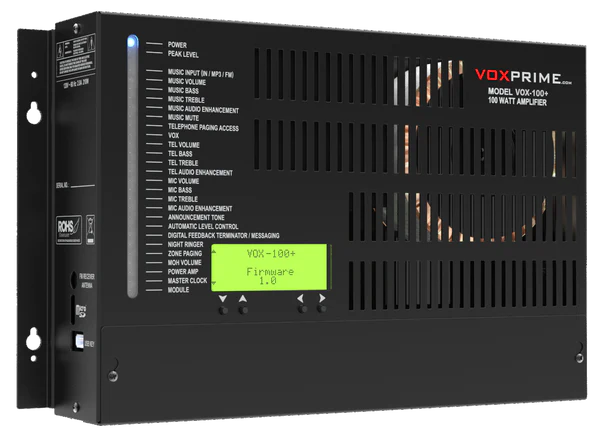

The VOX-100+ is a real full-featured wall mount 100W telephone paging amplifier designed to reduce installation costs and complexity.
It has all the required features to eliminate the need for expensive and complex external modules such as Telephone Access Module, Zone Paging Module, Scheduler, MP3 Player, Digital Feedback Terminator, Messaging System and FM Receiver.
Features:
- Built-In MP3 Player (USB Drive & MicroSD)
- Built-In FM Receiver
- Built-In 3 Zone Paging Output
- Built-In Telephone Access Interface
- Built-In Scheduler
- Built-In Night Ringer
- Built-In Digital Feedback Terminator
- Built-In Messaging System (Automatic Paging System)
- Microphone Input
- Music Input (RCA or Screw Terminal)
- 100W RMS Continuous / 160W Paging
- 70V / 25V Output Selection
- Music On Hold (MOH) Ajustable Output
- Preamp Output
- Bridgeable
- 100% Digital Interface
- MicroSD Card Included (Field Upgradable)
- VOX with sensitivity Level Control
- Automatic Level Control
- Volume, Bass, Treble & Audio Enhancement level controls
- Separate level controls for Music, Telephone & Microphone
- Adjustable Music Mute
- Music fade back after page
- Adjustable Announcement Tone
- Announcement Tones selection
- Peak Level Indicator
- Output fully short circuit protected
- Thermal and electronic overload protection
- Wall Mount & Rack Mount installation
- Heavy Duty Design
- RoHS Compliant
- Made in Canada
- 5 Years Warranty
- UL/CSA Listed
Tech Specs:
| Power Output: | 100 watt RMS Continuous / 160 watt Paging |
| Distortion: | Less than 1% |
| Frequency Response: | ±3 dB, 100 ≈ 20,000Hz |
| Sensitivity: | TEL: 150mV; MIC: 1mV; MUSIC: 100mV |
| Inputs: | TEL: 600Ω balanced line, transformer-isolated MUSIC: 10kΩ unbalanced, Hi-Z source, RCA jacks or screw terminals, Built-In MP3 player (using MicroSD card and USB drive), Built-In FM receiver, Amplified Music In MIC: Lo-Z balanced, screw terminal connection (dynamic only) MUSIC MUTE: Mutes music when shorted CONTACT RING: Triggers night ringer when shorted TEL RING: Triggers night ringer in response to 90V ring signal |
| Indicators & Digital Controls: | POWER & PEAK LEVEL LED indicators. MUSIC INPUT, MUSIC VOLUME, MUSIC BASS, MUSIC TREBLE, MUSIC AUDIO ENHANCEMENT, MUSIC MUTE, TELELPHONE PAGING ACCESS, VOX, TEL VOLUME, TEL BASS, TEL TREBLE, TEL AUDIO ENHANCEMENT, MIC VOLUME, MIC BASS, MIC TREBLE, MIC AUDIO ENHANCEMENT, ANNOUNCEMENT TONE, AUTOMATIC LEVEL CONTROL, DIGITAL FEEDBACK TERMINATOR / MESSAGING, NIGHT RINGER, ZONE PAGING, MOH VOLUME, POWER AMP, SCHEDULER, MODULE Indicators & digital controls (tactile switch with 4 X 20 characters LCD screen). |
| Outputs: | ZONE 1, 2, 3 OUT (70/25V RMS), MOH OUT (8/600 Ohm), PREAMP OUT (8 Ohm) |
| Overload Protection: | Thermal and electronic protection with a 2.5A, 120V ~ slow blow fuse |
| Power Source: | 120V AC, 60Hz |
| Power Consumption: | 176 watts |
| Finish: | Black powder paint with silver and red lettering |
| Dimensions: | 14-¼” W x 8-3/8” H x 2-3/4” D |
| Weight: | 15 lbs |
| Environment: | Indoor |
Specifications subject to change without notice.
