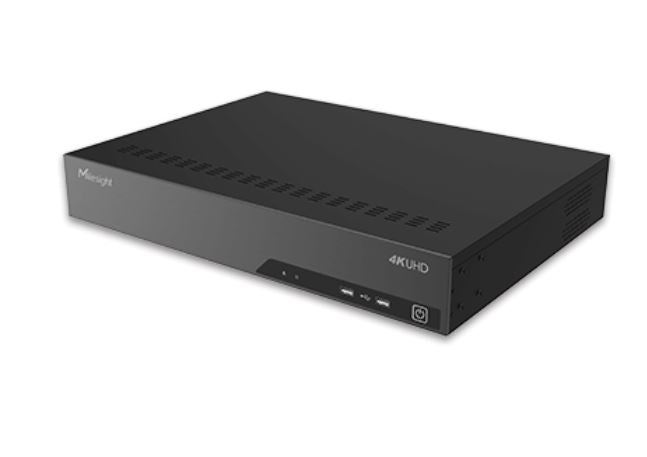

| Input MS-N8064G |
| Network Video Input |
64-CH |
| Bandwidth Requirement |
320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) |
| Output |
| HDMI Output |
2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output |
2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream |
Support |
| Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback |
6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 48*(30fps@720P), 64*(30fps @D1) |
| Format |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format |
G.711/AAC/G.722/G.726 |
| Storage |
| SATA |
8*SATA HDD (3.5”) |
| eSATA |
1*eSATA |
| Capacity |
Up to 10TB capacity for each HDD |
| Disk Array |
| Array Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
| Record |
| Recording Type |
Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type |
Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type |
General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup |
Video backup, Image Backup |
| Network |
| Network Protocols |
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |

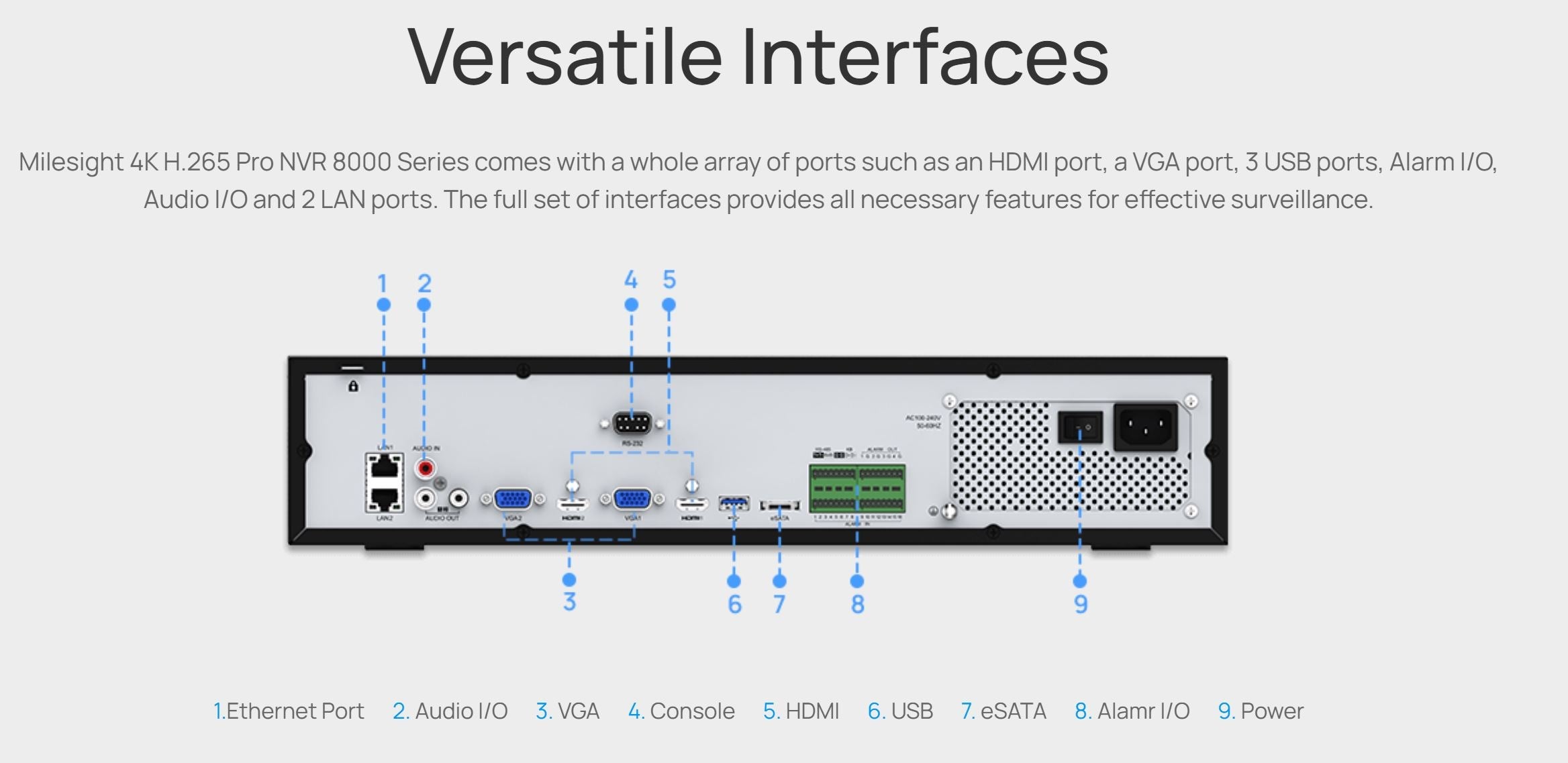

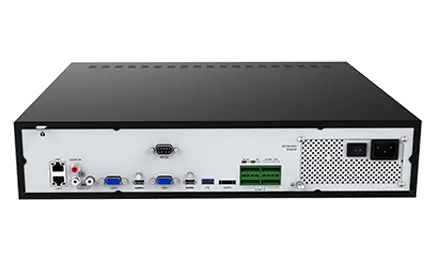

| Interface |
| Network Interface |
2*RJ45 10/100/1000Mbps |
| USB Interface |
1*USB 3.0; 2*USB 2.0 |
| Serial Interface |
1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| Audio Input/Output |
1*RCA/2*RCA |
| Alarm Input |
16-CH |
| Alarm Output |
4-CH |
| General |
| Compatibility |
ONVIF, API |
| Advanced Function |
ANR, N+1 Hot Spare |
| ANPR |
Support |
| Video Analysis |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control |
Milesight Keyboard(MS-K01) |
| Power Supply |
AC 100V∼240V 50Hz∼60Hz |
| Consumption |
≤35W(Without HDD) |
| Working Conditions |
Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions |
440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) |
