Description

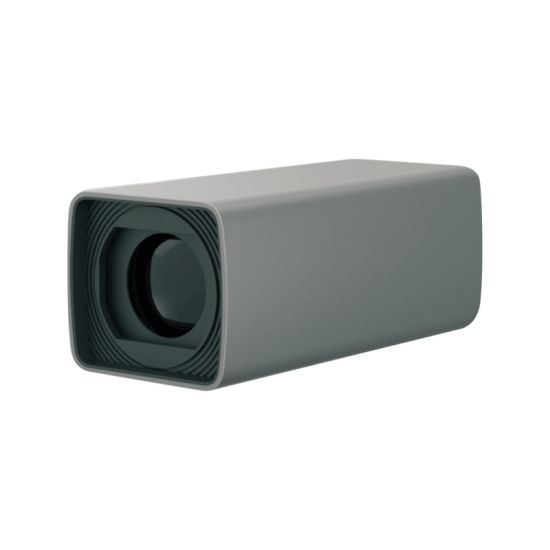

ZC4 Serie IP + SDI 20X Integrated camera with high quality, new design, good used in recording classroom and big video conference room.
Feature
※ H.265 video compression, dual stream
※ 2.14MP,1/2.8" Exmor CMOS
※ Support various HD video formats
※ Has 3G-SDI output interface
※ 20X Optical zoom, 12X digital
※ With OSD menu
※ With RS485 & RS232 control interface
※ Has image flip function
※ Has 5 buttons at back panel for easy configuration
| Technical Specification | ||
| Model No. | ZC4-A2001N | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP | |
| HD Signal Format | 1080P/60,1080P/50,1080P/30,1080P/25,1080I/60;720P/60,720P/50,720P/30,720P/25 | |
| WDR | Yes | |
| Focal | f =4.7mm -94.0mm | |
| IRIS | F1.6 - F3.5 | |
| Zoom | Optical: 20X, Digital: 12X | |
| Field of View | 59.5° - 2.9° | |
| Focus | Auto, Manual, One push | |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Shutter Speed | 1/1 - 1/10,000s | |
| AGC | Auto/Manual | |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Auto Track, | |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority | |
| BLC | Yes | |
| S/N Radio | Above 50dB | |
| Preset Number | 256 | |
| OSD | Yes | |
| Image Flip | Yes | |
| Noise Reduction | 2D/3D | |
| Network | ||
| Max,Image Size | 1920x1080 | |
| Frame Rate | HD:50Hz:50fps(1920x1080);60Hz:60fps(1920x1080) | |
| Video Compression | H.265,H.264 | |
| Audio Compression | AAC | |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF | |
| Dual Stream | Support | |
| Simultaneous Users | up to 10 users | |
| Interface | ||
| Video Output | 3G-SDI | |
| Ethernet | RJ45,100M | |
| Control Interface | RS-232,RS-485 | |
| General | ||
| Protocol | VISCA and PELCO-D, PELCO-P | |
| Spectra Address | 1~7(VISCA),0-255(PELCO-D/PELCO-P) | |
| Power Supply | DC12V | |
| Power Consumption | ＜15W | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 170mm x 80mm x 70mm | |
| Weight | 0.83KG | |
| Color | Grey | |
| ※※※ Product specification are subject to change without notice ※※※ | ||
