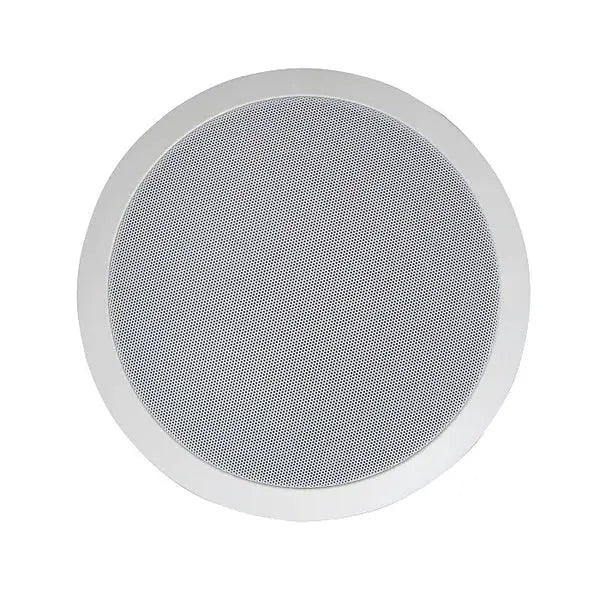

The VOX-FCS8T is a small footprint speaker that is designed to be easily installed in ceiling tiles. The built-in dog-ear mounting clamps ensure fast, easy and secure installation.
- 8 Ohm with 70V/25V Transformer built-in (Taps: 5W / 2.5W / 1W / 0.5W / 0.25W)
- 8" dual cone speaker
- Steel Grille
- Dog-ear mounting clamps
|Average Sensitivity:||91 dB SPL, 1W/1M|
|Loudspeaker Power Rating:||10W RMS|
|Maximum Power Rating:||15W @ 8 Ohms|
|Calculated Output:||100 dB-SPL 5W/1M|
|Magnet Type & Weight:||Ferrite, 5 oz. Nominal|
|Frequency Response:||90Hz ~ 20kHz|
|Nominal Coverage Angle:||120° Conical|
|Audio Connection:||Color-Coded Leads|
|Transform:||70V/25V (Taps: 5W / 2.5W / 1W / 0.5W / 0.25W)|
|Dimensions:||10.75'' (Dia.) x 3'' (D)|
Specifications subject to change without notice.
