Description

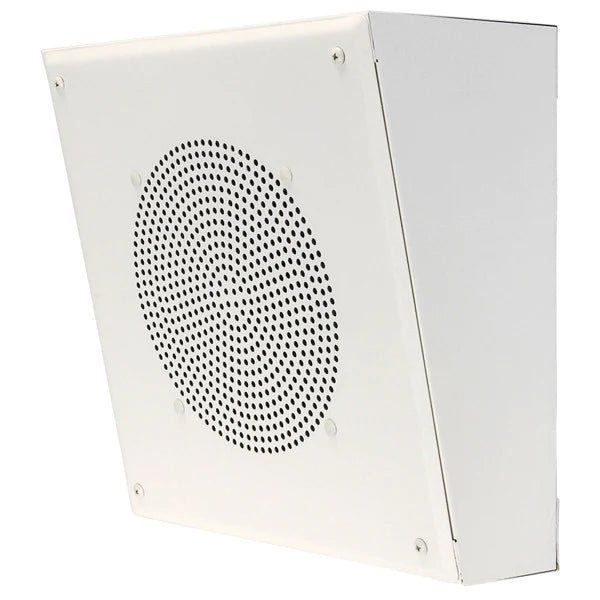

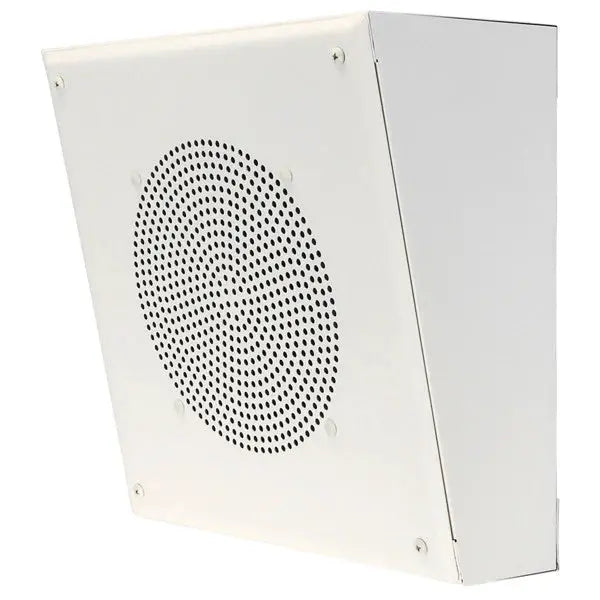

The VOX-HFMW8 is a complete loudspeaker system consisting of an 8” OD dual cone loudspeaker and a 5W 25/70V transformer mounted on a square, screw mount, steel baffle with a slanted, steel, open back, surface mount enclosure.
Features:
- 8 Ohm with 70V/25V Transformer built-in (5W / 2.5W / 1.25W / 0.63W / 0.31W)
- Dual Cone 8'' Loudspeaker
- Steel Grille with a slanted steel surface mount enclosure
- White powder coat finish
Tech Specs:
Average Sensitivity: | 92 dB SPL, 1W/1M |
Loudspeaker Power Rating: | 12W RMS EIA 426A Standard |
Maximum Power Rating: | 15W @ 8 Ohms |
Calculated Output: | 99 dB-SPL 5W/1M |
Magnet Type & Weight: | BeFe Ceramic, 5 oz. Nominal |
Frequency Response: | 65 Hz - 17 kHz EIA 426A Standard |
Nominal Coverage Angle: | 100° Included Angle -6 dB / 2 kHz, Half space |
Audio Connection: | Color-Coded Leads |
Transform: | 70V/25V (Taps: 5W / 2.5W / 1.25W / 0.63W / 0.31W) |
Dimensions: | 11.75'' (H) x 11.75'' (W) x 5.25'' (D) |
Weight: | 4.5 lbs |
Color: | White |
Environment: | Indoor / Protected Outdoor |
Specifications subject to change without notice.
