Why Choose an Industrial 10G Switch Ultra POE?

The PLANET IGS-1000-8UP4X is an industrial-grade, DIN-rail mounted unmanaged Gigabit Ethernet switch designed for demanding environments. It features plug-and-play functionality and supports eight 10/100/1000BASE-T ports with IEEE 802.3bt PoE++ capabilities, delivering up to 95 watts of power to remote powered devices (PDs) requiring reliable and robust power supply. Additionally, the switch includes four 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports, enabling long-distance, high-speed, and stable data transmission to a remote core network. This makes it ideal for installations where both high-performance data transfer and substantial power delivery are essential.

IP30 Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch (360W PoE budget, PoE Usage LED, -40~75 degrees C, dual 48~54V DC, supports 1G/2.5G/10G SFP transceivers) Unmanage

Outstanding 802.3bt PoE++ and 10G Fiber Solution for Hardened Environment

Featuring Plug and Play designed and 10G SFP+ uplink ports to be installed in heavy industrial environments, PLANET IGS-1000-8UP4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch features eight 10/100/1000BASE-T ports and IEEE 802.3bt PoE++ (Power over Ethernet Plus Plus) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its four 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports provide long distance, high speed and stable data transmission to a remote core network.

The IGS-1000-8UP4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 360 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial switch with ultra POE Ethernet networks, its Plug and Play makes configuration easy.



10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

Featuring a 10Gbps uplink, the IGS-1000-8UP4X whether connecting to an industrial backbone or high-capacity servers, its prowess is unmatched. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps.

The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.

802.3bt PoE++ 90~95-watt Power over 4-pair UTP Solution

As the IGS-1000-8UP4X adopts the IEEE 802.3bt PoE++ standard and UPoE technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability more than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

• PoE PTZ speed dome cameras
• Thin clients
• AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
• Remote digital signage displays
• PoE lightings



Intelligent LED Indicator for Real-time PoE Usage

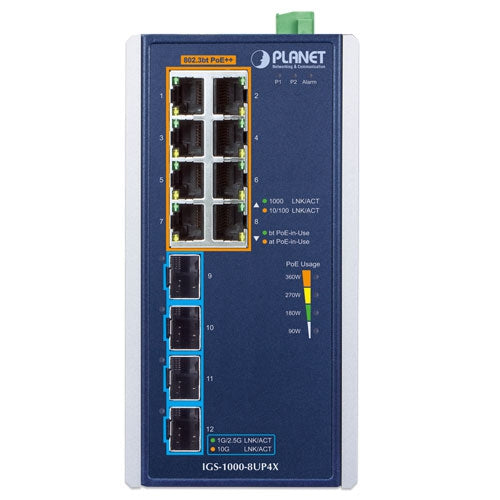

The IGS-1000-8UP4X helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indicator. On the front panel of the Industrial Gigabit PoE++ Switch, there are four different power usage LED indicators indicating 90W, 180W, 270W, and 360W.



Dual Power Input for High Availability Network System

The IGS-1000-8UP4X features a strong dual power input system with 48~54V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8UP4X via power supply 2 alternatively without any loss of operation.

Environmentally Hardened Design

With the IP30 metal industrial case, the IGS-1000-8UP4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1000-8UP4X can be placed in almost any difficult environment.

Robust Protection

The IGS-1000-8UP4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Perfect Integration Solution for IP PoE Camera and NVR System

The IGS-1000-8UP4X provides eight 10/100/1000BASE-T 802.3bt PoE++ ports which can offer sufficient PoE power to 8 high-power required PoE IP cameras at the same time. In addition, with the Gigabit copper and 10GBASE-X fiber uplink interfaces, the IGS-1000-8UP4X can connect to a core switch and send video streams to an NVR and monitoring center.

Through the high-performance switch architecture, the IGS-1000-8UP4X facilitates the recorded video files from the 8 PoE++ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-1000-8UP4X undoubtedly brings an ideal secure surveillance system at a lower total cost.



Industrial-grade PoE++ Switch for Building Automation and Security

Suitable for buildings where security is strictly enforced, the IGS-1000-8UP4X, with eight Gigabit Ethernet 802.3bt PoE++, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.

For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-1000-8UP4X makes the installation of IP cameras or wireless APs easier and more efficient.

High-Performance Networking

In today's world, having a reliable industrial 10G switch ultra POE is essential for businesses. Because it combines both speed and power delivery, this switch can handle demanding applications like surveillance cameras and wireless access points. But what sets it apart is its ability to deliver up to 60 watts per port, which is perfect for ultra POE devices.

Robust Design for Harsh Environments

This switch isn't just about performance; it’s built tough. Unlike consumer-grade switches, the IGS-1000-8UP4X can operate in extreme temperatures and dusty conditions. So whether you're installing it in a factory or outdoors, you don’t have to worry about downtime. Plus, its compact size makes it easy to fit into tight spaces.

Easy Installation and Maintenance

Because the switch is unmanaged, setup is simple and hassle-free. You plug it in, and it works right away—no complicated configurations needed. However, simplicity doesn’t mean lack of features. With 8 PoE+ ports and 4 SFP+ ports, you get flexibility and scalability for your network needs. And since it requires minimal maintenance, you save time and money in the long run.
