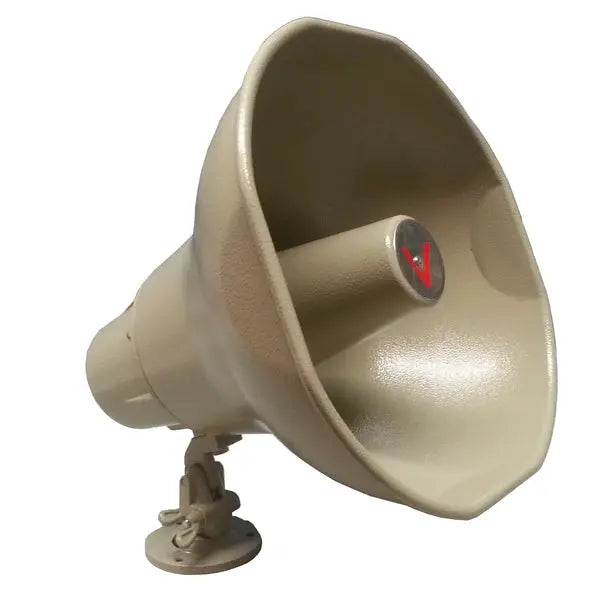

The VOX-15AT is a double re-entrant horn, compression type loudspeaker with an integrated 15W-25/70V rotary select transformer and an adjustable mounting base.
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Rotary tap impedance selector
- Tilt and swivel base for easy positioning
- Weatherproof, all-metal construction
- Beige enamel finish
|Power Rating (RMS):||15 watts continuous, 20 watts equalized|
|Frequency Response:||275Hz to 14kHz|
|Sound Pressure Level:||121 dB @ four feet on axis with 15 watt input @ 1000 Hz|
|Sensitivity as Microphone:||-22 dBm [Ref: 10 dynes/cm2]|
|Dimensions:||9" (Dia.) x 9-1/4" (D)|
|Finish:||Textured mocha enamel|
|Tap settings for 70V:||0.9 / 1.8 / 3.8 / 7.5 / 15 watts|
|Tap settings for 25V:||0.48 / 0.9 / 1.8 watts|
|Environment:||Indoor / Outdoor|
Specifications subject to change without notice.
