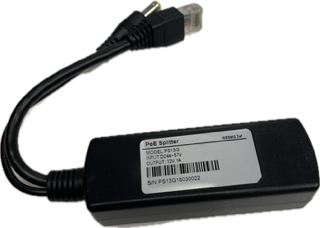

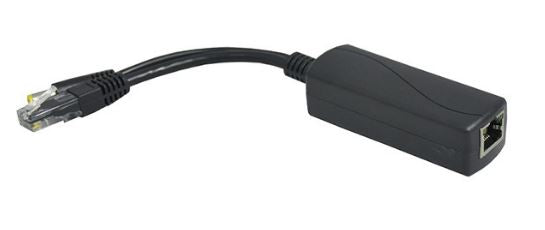

One channel Gigabit POE splitter (IEEE802.3af standard) - PS13G

Save $0.70
GloballSKU: PS13G

Price:
Sale price$6.29 Regular price$6.99
Stock:
In stock (33 units), ready to be shipped

Description

Products Description:
The PS13G PoE Splitter is used for
splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Support
PoE applications in Gigabit Ethernet environments.
The modules compliant with IEEE 802.3af power classification and support PSE
Alternative A and Alternative B connections. Maximum power output can reach 12W.
Tiny size, 80mm (L) x 27mm (W) X 22mm (H), wide input voltage range, 36Vdc to
57Vdc and less external components needed one output decoupling capacitor.
Product Features:


 Complies with IEEE802.3af.
 Support PoE applications in Gigabit Ethernet environments.
 Auto-Sensing Algorithm enables taking power from IEEE802.3af PSE.
 Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
 Support wide input voltage range 36Vdc to 57Vdc.
 Maximum power output up to 12W.
 Output 12VDC/1A.
 Thermal cut off.
 Short circuit protection.
 High efficiency DC/DC converter.
 LED indicators for power input indication.

Plug and play
